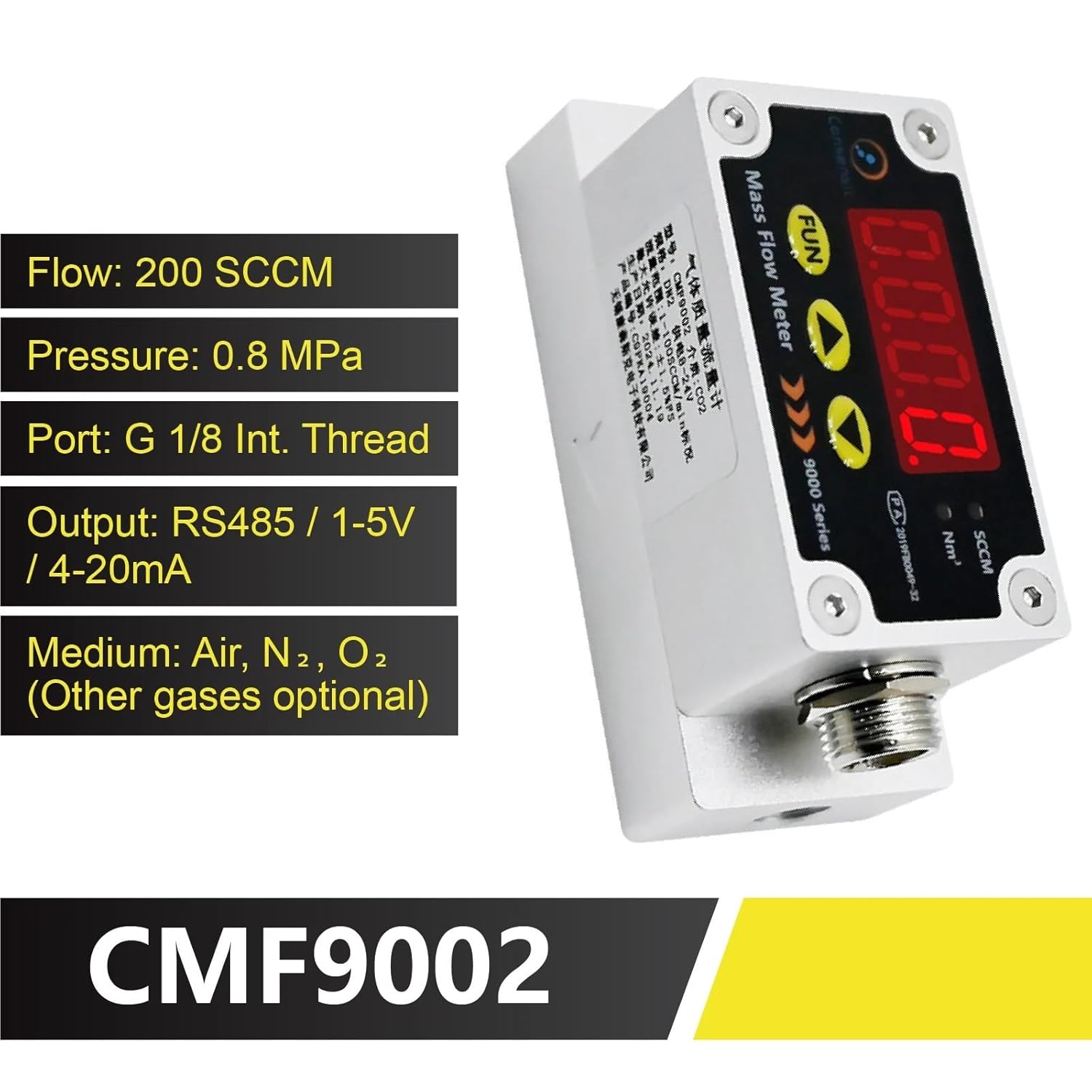

CMF9002 Digital Thermal Mass Flow Meter for Air Oxygen Nitrogen Gas RS485 Analog Output 4-20mA 1-5V Sensor(CMF9002-200)

Flowmeters1.NOTE:Due to page limitations, some configuration options may not be fully displayed. Please contact us for customization.Power supply: 8-24VDC, 80mA.Output: 1-5V analog (default), optional 4-20mA.Communication: RS485 (MODBUS protocol).Max pressure: 0.8MPa.Operating temperature: Media -10-65°C; Ambient -25~85°C.Installation: Inline mounting. Supported thread types:G 1/8", G 1/4", G 3/8", G 1/2", G 3/4", NPT 1", depending on model.Display: Instant flow (SCCM/SLPM); Total flow (L/Nm³).Model-to-Port Mapping:CMF9002 DN02 G 1/8"CMF9005 DN05 G 1/4"CMF9008 DN08 G 3/8"CMF9012 DN12 G 1/2"CMF9019 DN19 G 3/4"CMF9025 DN25 NPT 1"2. ParametersParameterValueModelCMF9002SeriesCMF9000Flow Range Options30, 50, 100, 200, 500, 1000, 2000 mL/min5, 10, 20, 50, 100, 500, 800, 1000 L/minGas TypesAir, Oxygen, Nitrogen, Argon, CO3. FeaturesWide Range Flow MeasurementMultiple flow ranges from 30 mL/min to 1000 L/min for diverse needs.Multi-Gas CompatibilityAccurately measures air, oxygen, nitrogen, argon, and carbon dioxide.Industrial-Grade DurabilityBuilt for harsh environments with stable performance.Compact and Easy to IntegrateSmall form factor makes it ideal for embedded systems and instruments.DIY Supplies : PlumbingModel : CMF9002Series : CMF9000Flow Range Options : 30, 50, 100, 200, 500, 1000, 2000 mL/min 5, 10, 20, 50, 100, 500, 800, 1000 L/min
